How Are Large-Scale Smart Glass Curtain Wall Projects Delivered?

Large-scale smart glass curtain wall projects involve more than supplying switchable glazing in the required quantities. Architects, facade consultants, glass processors, electrical contractors, control-system integrators, and installation teams all work with different drawings, tolerances, and responsibilities. If these elements are not coordinated, even well-manufactured glass can become difficult to install, connect, test, or maintain.

For project teams, delivery begins with a clear understanding of the building requirements and continues through technical confirmation, sample approval, production, inspection, site installation, commissioning, and handover. Each stage depends on information passed from the previous one. Missing dimensions, unclear wiring responsibilities, or late design changes can affect several teams at once.

PDLC Smart Glass adds another layer of coordination because the facade is both a building envelope component and an electrically controlled system. Glass configuration, electrode positions, power distribution, control zones, and access for future maintenance need to be considered alongside the conventional requirements of facade construction.

Project Requirements Need to Be Defined Before Production

The initial project brief often includes the facade area, building location, preferred glass appearance, and intended use. These details establish the general direction, but they are not enough to release an order for manufacturing.

The project team needs to confirm how the glazing will function in the completed building. A curtain wall designed for an office interior may have different privacy requirements from one used around a public exhibition space. Some areas may need to switch together, while others may require independent control. Certain glass sections may remain permanently transparent or frosted, depending on their position and purpose.

A useful project brief should cover:

· The building location, facade orientation, and intended application.

· The required transparent and frosted states, including the expected operating pattern.

· Glass dimensions, thickness, construction, and any special shapes.

· The visual requirements for the clear and privacy states.

· The planned control method, such as wall switches, centralized controls, or integration with a building management system.

· The division of responsibility for glass installation, electrical connections, controls, and commissioning.

· Site access conditions, delivery restrictions, and the expected installation sequence.

These details help the supplier determine whether the proposed configuration is suitable for the project and identify questions that need to be resolved before manufacturing.

The brief should also distinguish confirmed requirements from provisional information. Facade dimensions, for example, may change as structural calculations and shop drawings develop. Treating preliminary dimensions as final can lead to unnecessary remakes or site modifications.

Technical Coordination Connects the Different Project Teams

Smart glass curtain wall delivery depends on information moving accurately between the design and construction teams. Architectural drawings show the intended appearance and panel arrangement, while facade shop drawings define the dimensions and interfaces needed for fabrication and installation. Electrical drawings then establish how power and control connections will reach the glazing.

These documents need to describe the same system.

A panel identifier used on the facade drawing should correspond with the relevant glass schedule, wiring plan, and control-zone information. If the panel numbering changes during design development, the change needs to be reflected across the related documents. Otherwise, a glass panel may arrive with identification that does not match the installation or electrical records.

Technical coordination should resolve several practical questions:

· Which party is responsible for confirming the final glass dimensions?

· Who defines the electrode and connection positions?

· Where will power supplies and control components be installed?

· Which contractor provides the wiring between the glass and the control equipment?

· How will the system be tested after installation?

· Who approves changes that affect the glass construction or electrical arrangement?

Responsibility boundaries matter because smart glazing combines work that may otherwise be managed under separate contracts. A glass supplier may manufacture the panels, but site wiring and building automation may fall under other contractors. Unless the interfaces are defined, each party may assume that another team is responsible for a connection or test.

Drawing and revision control

Design changes are common during construction. A mullion adjustment, revised opening dimension, or change in control zoning may affect glass sizes, cable routes, or connection locations.

A controlled revision process helps prevent superseded information from reaching production. Each release should identify the applicable drawing revision, approval status, and any changes from the previous version. Where a change affects only part of the facade, the affected panel numbers should be listed clearly.

Production should proceed from approved information rather than a mixture of preliminary drawings, email instructions, and outdated schedules. When a revision arrives after manufacturing has started, the project team should assess its impact before confirming whether the change can be incorporated.

Representative Samples Establish the Visual and Technical Reference

Appearance can be difficult to judge from drawings alone. A representative sample gives the project team a physical reference for reviewing the glass construction, visible edges, optical characteristics, and switching behavior.

For PDLC Smart Glass, approval should consider both operating states. The clear state and the frosted state serve different purposes, so assessing only one can leave important questions unanswered.

Sample review may include:

· The appearance of the glass when transparent and when switched to privacy mode.

· Visible haze, color tone, and light transmission in the intended viewing conditions.

· The appearance of the edges and electrical connection area.

· The proposed glass build-up and compatibility with the facade system.

· Switching response and consistency under the agreed test conditions.

· The proposed control method and the way the sample connects to its power supply.

A sample should represent the intended production configuration as closely as practical. If the final project uses different glass thicknesses, interlayers, or panel dimensions, the team should confirm whether the approved sample remains representative of those variations.

Approval records should identify the sample configuration and the criteria accepted by the relevant parties. This provides a reference for production inspection and helps reduce disagreements about appearance later in the project.

Production Release Requires Complete and Consistent Information

Once the technical details and sample have been approved, the project can move toward production release. The supplier needs a coordinated set of information that defines what is to be manufactured and how each panel relates to the building.

A production schedule should connect panel identification with dimensions, glass construction, processing requirements, and relevant electrical details. Special shapes, edge conditions, cut-outs, and connection positions need particular attention because they may not be interchangeable with standard panels.

Before release, the project team should confirm that:

· Final dimensions have been approved by the responsible party.

· Glass specifications match the agreed project configuration.

· Panel identifiers are consistent across the drawings and schedules.

· Electrical connection details have been coordinated with the facade and wiring designs.

· Special processing requirements have been reviewed.

· Any outstanding technical questions have been resolved or formally recorded.

The timing of production release is also important. Releasing one area while adjacent areas remain under design may be appropriate for a phased project, but the boundaries must be clear. The team should know which panels are approved, which remain on hold, and whether later changes could affect already released work.

This approach supports controlled manufacturing without treating the entire facade as one undifferentiated order.

Batch Identification Supports Inspection and Site Installation

Large projects may contain many panels with similar dimensions and appearances. Without reliable identification, locating a particular unit during inspection or installation can become time-consuming.

Batch and panel identification provide a link between the manufactured glass and the project documentation. Each panel should be traceable to its approved specification and the relevant production and inspection records.

The identification method needs to remain practical throughout handling and installation. Labels should be positioned so that they can be checked without damaging the glass or interfering with installation. Where packaging labels are used, they should correspond with the panel markings and delivery documents.

Traceability can help the project team address questions such as:

· Which production batch does a particular panel belong to?

· Which specification and drawing revision were used?

· Has the required inspection been completed?

· Where should the panel be installed?

· Which records apply if a panel requires further examination?

For phased deliveries, the identification system should also distinguish between areas, floors, elevations, or installation sequences. This reduces the risk of panels being sent to the wrong work zone or stored in a location that complicates later handling.

Inspection and Packing Should Reflect the Installation Sequence

Inspection is not limited to checking whether the glass looks acceptable when it leaves the factory. The project team also needs to ensure that the delivered panels correspond with the approved schedule and can be identified and handled correctly on site.

Inspection requirements should be agreed before production rather than introduced after manufacturing has begun. Depending on the project specification, checks may cover dimensions, glass construction, edge condition, appearance, electrical connections, and switching operation. The applicable acceptance criteria should be documented so that inspection results can be assessed consistently.

Packaging also needs to reflect the realities of site delivery. Large curtain wall panels may require careful handling, suitable supports, and protection against damage during transport and temporary storage. Packaging arrangements should take account of panel size, delivery access, unloading equipment, and the sequence in which the installation team will need the glass.

For a phased project, packing by installation area can simplify distribution. The arrangement should make it possible to identify the contents without repeatedly unpacking panels or moving unrelated materials.

A delivery plan should confirm:

· The quantity and identification of panels in each shipment.

· The destination and intended installation area.

· The unloading and temporary storage arrangements.

· The documents accompanying the shipment.

· The process for recording visible damage or discrepancies on arrival.

The supplier and site team should agree how delivery issues will be reported and resolved. Prompt documentation helps distinguish transport damage, handling issues, and specification discrepancies.

Site Installation Must Preserve the Approved Interfaces

Once the glass reaches the building, installation becomes the responsibility of the site team working within the approved facade system. The installation method should follow the project drawings and the requirements of the glass and facade manufacturers.

PDLC Smart Glass needs appropriate handling because the glass assembly includes electrical connections as well as glazing components. Installation teams should understand the locations of these connections and avoid actions that could damage them during lifting, positioning, fixing, or sealing.

Coordination with other facade work is equally important. The glass may need to be installed alongside framing, seals, drainage details, and adjacent building components. Changes made on site should not compromise the approved glass configuration or obstruct access required for electrical work.

Before installation begins, the relevant teams should confirm:

· Panel identification and installation locations.

· Handling and lifting procedures.

· Glass orientation and connection positions.

· The condition and readiness of the receiving frame.

· Protection of electrical leads and connection points.

· Responsibility for making and checking site electrical connections.

· Procedures for recording damage, dimensional discrepancies, or approved deviations.

If a panel does not fit the opening, site personnel should not assume that trimming or modifying it is acceptable. The issue should be referred to the responsible technical parties for assessment. Unapproved alterations can affect the glass assembly, electrical connections, or warranty conditions.

Clear communication between the glazing contractor and electrical contractor is particularly important. The glass may be physically installed before all wiring and controls are ready, but the project schedule should identify how the work will be protected and completed without leaving connections exposed or inaccessible.

Commissioning Confirms the Installed System

Factory checks and sample approval provide important evidence, but they do not establish that the complete building system has been installed and connected correctly. Commissioning evaluates the assembled installation under the agreed project procedures.

The commissioning plan should be prepared early enough for the relevant contractors to understand their responsibilities. It should identify the panels or zones to be tested, the operating commands to be checked, the expected responses, and the records required for acceptance.

Testing may include:

· Confirming that panel identification matches the control-zone schedule.

· Checking the electrical connections and power supply arrangements.

· Operating the glass through its specified states.

· Verifying that the intended panels respond to each control command.

· Checking that independent zones operate as designed.

· Recording any inconsistent response, connection issue, or incomplete installation.

· Confirming that outstanding defects have been assigned for correction and retesting.

The test conditions and acceptance criteria should follow the project specification and the agreed supplier documentation. Where a system is integrated with a building management system, the commissioning process should also verify the relevant interface and control functions.

A successful test of one sample panel does not replace checks of the installed zones. The commissioning record should show what was tested, where it was tested, and whether the result met the agreed requirements.

Handover Documents Support Operation and Maintenance

A smart glass curtain wall becomes part of the building’s long-term operating system. The facilities team needs enough information to identify the glass configuration, understand the controls, and respond when a panel or zone requires attention.

Handover documents should be prepared as part of project delivery rather than assembled at the last moment. The exact package will depend on the contract, but it commonly includes approved drawings, glass schedules, control-zone information, operating instructions, inspection records, commissioning results, and maintenance guidance.

The handover package should make it straightforward to connect a physical panel with its technical records. If the project has undergone approved changes during construction, the final documentation should reflect the installed condition rather than leaving the facilities team with superseded drawings.

Useful handover information may include:

The project team should also explain which components are supplied by the smart glass manufacturer and which belong to other contractors. This distinction can help facilities personnel direct service requests to the appropriate party.

Project Experience Requires Coordination Across Different Building Types

Large-scale smart glass applications can vary considerably in their architectural form and operating requirements. The delivery process must account for those differences rather than assuming that one facade arrangement can be repeated unchanged across every project.

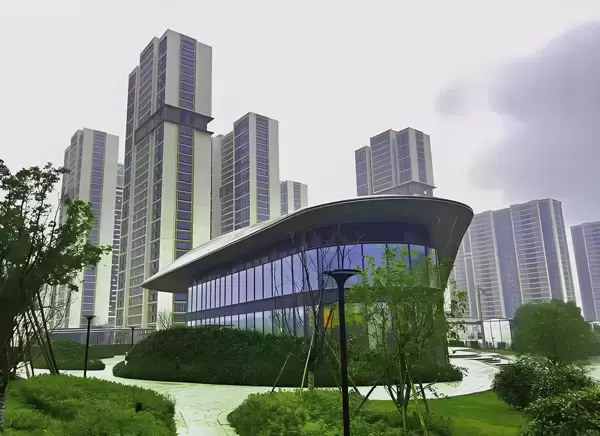

Zhuhai Shuifa Singyes New Materials has supplied smart glass for projects including the approximately 7,000 m² external curtain wall at Guiyang Longdongbao Airport T3 and the approximately 2,000 m² customized composite smart glass lighting roof at Zhuhai Hengqin Civic Center. Other referenced projects include around 2,300 m² of customized smart glass for Ningbo Tongshan Future Community Exhibition Hall and approximately 2,500 m² of smart glass for Shanxi Datong Energy Museum, which also includes more than 230,000 lighting points.

These project references illustrate the range of applications in which smart glass may be incorporated, from extensive glazed facades to customized roof and exhibition structures. The specific technical requirements, construction interfaces, and delivery arrangements must still be established for each project.

Project area alone does not determine complexity. Panel geometry, building access, control requirements, glass construction, and the number of parties involved can all affect coordination. A smaller project with unusual shapes or complex controls may require a different delivery approach from a larger facade using a more regular panel arrangement.

Delivery Quality Depends on the Entire Project Chain

Large-scale Smart Glass Curtain Wall delivery is a coordinated process. The initial brief establishes the intended function, technical coordination aligns drawings and responsibilities, sample approval sets a reference, and production release defines the units to be manufactured. Inspection, packing, installation, commissioning, and handover then carry that information through to the completed building.

The process works most reliably when each stage has clear inputs, documented approvals, and an identified party responsible for the next step. Changes need to be assessed across the relevant disciplines, and the final records should describe the system that was actually installed.

For architects, facade contractors, developers, and building operators, the practical objective is a curtain wall that matches the approved design, operates according to the project requirements, and can be maintained with clear technical information. Achieving that objective depends not on one isolated manufacturing step, but on consistent coordination from the first project discussion through final handover.
